72V 20AH Electric bicycle Battery 72V Scooter Lithium ion battery for 2000W Motorcycle

Type Lithium Battery

Capacity 10 - 20Ah

Brand Name CODDWATTSAMP

Voltage 72V

Continuous discharge current 20A

Peak discharge current 60A

Discharge cut off voltage 56V

Charge protection voltage 84V

Size about 330*220*170 mm

Net Weight 7KG

Fit load 50W ~ 2000W

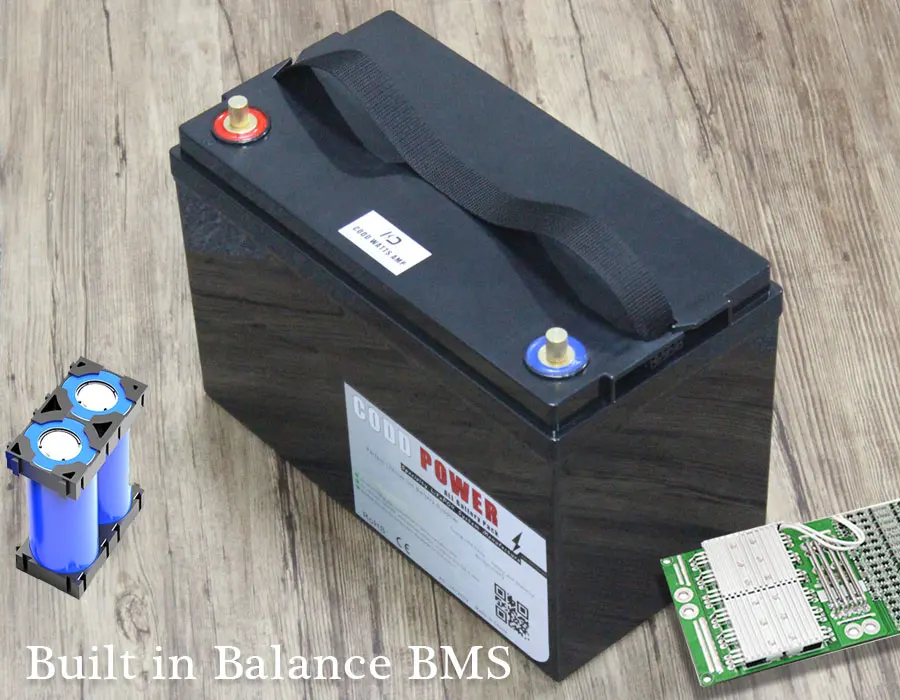

You are here:Home>>Electric Bike Battery >> 72v 20ah lithium ion battery pack Battery Name Li-ion Electric Bike Battery Combination 20S 7P or 9P Nominal voltage 72V Nominal capacity 20Ah Standard discharge current 20A (1C) Max discharge current 60A(3C) Standard charge current 3A Fast charge current 10A Over discharge cut off voltage/series 56V (2.8 ± 0.06V) Over charge protection voltage/series 84V(4.2 ± 0.06V) Discharge working temperature -20-60°C Charge working temperature 0-45°C Recommended storage temperature 23 ± 5°C Net Weight about 7Kg Size about 330*220*170 mm BMSModel Lithium ion BMS System Balance voltage for single cell 4.18V Balance current for single cell 35±5mA Over charge detection voltage 4.25 ± 0.025V Over charge release voltage 4.19 ± 0.025V Over discharge detection voltage 2.8 ± 0.025V Over discharge release voltage 3.0 ± 0.025V Over current detection voltage 150mV Current consumption ≤20μA Over charge detection delay time 0.5S—2S Over discharge detection delay time 10mS—200mS Detection delay time 250uS Release condition Cut load Protection circuitry(MOSFET) ≤20mΩ Charger Model Lithium ion Smart mode CC / CV Maximum voltage 84 V Output Capacity 3 A AC Voltage 110 or 220V With Balance BMS System CC / CV Charger SB50A Connector Plug Shipping by useFedex or UPSExpress 12~18 days delivery U.S. EU Free duty and tax （other countries, we use other transportation） ShippingContact us for more details about packing, Australia , Russian , Ukraine delivery time 15~25 days Q: What productions do you make ? A: The main productus are LiFePO4 , 18650 battery pack, e-bike battery, polymer battery, or any customized battery projects. Q: How about your company intelligence? A: ISO9001 certification, China Hi-tech company, 10 million battery assurance, 8 patents, Almost all products are MSDS, FCC , UN38.3, IEC62133, CB,etc certificated. Q: How about the quality guarantee period? A: One year.
