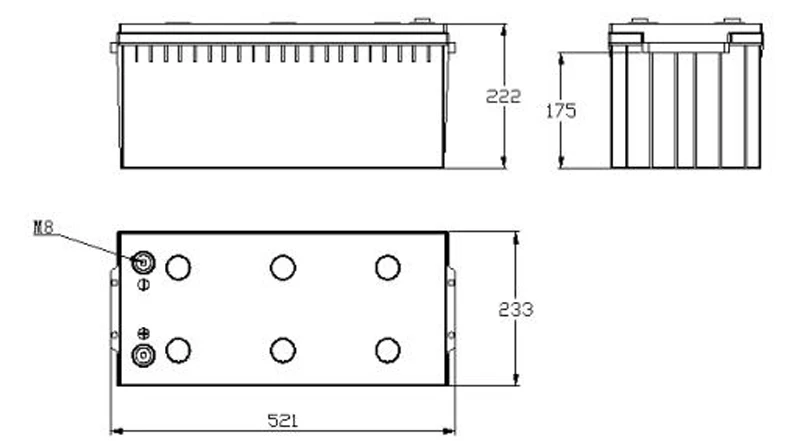

12V lithium ion battery is new environmentally friendly backup power system focus on short-time and high-rate discharge scenarios.The environmentally friendly lithium ion battery configured with high-performance BMS, has a wide range of performance and application advantages compared with conventional battery. Basic Specification ItemsItems Parameter BatteryType LiFePO4 NominalVoltage 12.8V Nominal Capacity 200Ah Energy 2.56KWh InternalResistance ≤20mΩ Cell type 3.2v 26650 3c 4000mah cell LimitedChargeVoltage 14.6±0.2V FloatingChargeVoltage 13.8±0.2V ChargeMethod CC/CV DischargeCut-offVoltage 10.0V StandardChargeCurrent 10A Max.ChargeCurrent 50A StandardContinuousDischargeCurrent 100A Max.ContinuousDischargeCurrent (<10min 110a="" 200a="" cyclelife="" pulsedischargecurrent="" s="">2000 cycles Dimension (mm) Length: 521±2Width: 238±2 Height: 222±2 Weight 24±0.2Kg Charge Temperature Range 0~45℃ Discharge Temperature Range -20~60℃ RecommendedOperatingTemperature 15~35℃ Self-DischargeRate (Residualcapacity) ≤3%/month;≤15%/years Self-DischargeRate (Reversiblecapacity) ≤1.5%/month;≤8%/years StorageTemperature&HumidityRange (Lessthan1month) -20~35℃,45~75%RH StorageTemperature&HumidityRange (Lessthan3months) -10~35℃,45~75%RH Recommended StorageTemperature&HumidityRange 15~35℃,45~75%RH 1 .It is high integrated with less installationspace 2.Long life cycle, >3000 times at 80% DOD 3.It without heavy metals and environment friendly 4.Maintenance free,there is no memory effect 5.Internal BMS with full protection,battery has highvoltage protection with higher reliability SAFETY Passed the below abuse and safety test-short-circuit, dropping, nail penetration, impact, crush, thermal shock, over-charge,over-discharge: no fire, no explosion with stable chemical structure. APPLICATIONS 1.Energy Storage --Solar-Wind Power System / City Grid (On/Off) / Community and Family 2.Back-up System and UPS --Telcom Base / CATV system / Computer Server Center / Medical Instrumnt / Military Equipment 3.Other Applications --Security and Electronics / Mobile POS, Mining Lihgt / Torch / LED Light / Emergency Light --RV Motorhome /Golf Carts Battery / Boat Marine Yachts / Electric Skateboard --LED Backup / Engine Starting Battery,etc. Product Comparison Advantage 1, High energy density 2, High working voltage for single battery cells 3, Pollution-free 4, Long cycle life 5, No memory effect 6, Capacity, resistance, Voltage, platform time consistency is good 7, With short-circuit production function, safe and reliable 8, Factory price& High quality 9, Good consistency, low self discharge 10, Light weight, small and customized size 11.Wide application for electronics and industry Application Widely used for Electric bicycle,golf car,electric wheelchair,power tools,scooter, UPS,Solar&Wind energy storage system,EV,etc. About the BMS Our BMS consists of Master BMS Circuitry (we named “BMU”), Slave BMS Circuitry (we integrate itinto our battery module) and contactor.Besides the basic functions such as over charge/ discharge,over current, short circuit, overtemperature and balancing, Our BMS owns the following features, 1. Master-Slave architecture makesthe system flexible; 2. Two level warning makes maintenance easier; 3. CAN2.0 and industrial level electronic components make system reliable; 4. Contactor makes high rate charge & discharge feasible; 5. Periodic insulation measurement makes personnel safety possible; 6. Host can control the system easily; Pictures Factory Experience We have more than 10years experience in producing Nicd&NiMH battery cell and pack,7years of experience to manufacture Lithum ionbattery,thefactorypassedISO 9001:2008 certification. Strict process management and control Each process for making battery were under strict managementand control,all of the battery wereunder full inspection before delivery. After-sales service Support prompt shipment and sample quality products,track the cargo in time after delivery.Morethanone year Guarantee,there are safety and operating instructions for your reference. Why Choose Us? •Quickresponsetoclients'enquirieswithin12hrs •Tailor-madesolutionprovidedbyourexperiencedteamandprofessionalengineers for lithium polymer battery •Morethan10yearsexperienceinproducingbatteryproductsforvariousapplication. •Valuequalityandlong-termcooperationtoreachwin-winrelationship. 10min>
Senin, 03 Februari 2020
No taxes LiFePO4 12V200Ah lithium iron phosphate battery pack for RV,Solar,Marine, Off-grid Applications,GolftCart,Light Weight
New arrival Cute new Cartoon lovely Character cute purple bear mascot Costume fancy dress costume Adult size
Hot sale Cute Character Adult lovely green pineapple Mascot Costume fancy dress Halloween party costume
Hot selling 2017 Cartoon Character Adult lovely blue Mascot Costume fancy dress party costume adult size
New arrival 2017 Cartoon Character Adult lovely football doll Mascot Costume fancy dress party costume adult size
Hot sale Cute Cartoon Character Adult lovely bird Mascot Costume fancy dress Halloween party costume
Hot sale Foam Adult rabbit mascot costume party costumes fanc college mascot dress costuymes outfit
Hot sale Cute Adult mascot THE Pink Princess Adult Size Halloween Fancy Dress Cartoon Party Outfits Funny Suit
Hot sale Cute Adult mascot Adult Size Bright Red Dress Clown Costumes Halloween Costume Fancy Dress Suit
Hot selling 2014 Adult cute Grey Eeyore DONKEY Halloween Mascot Costume Fancy Dress Cartoon Party Outfits
Hot selling 2014 Adult cute High Quality Cute Sly Mascot Costume Adult SIZE Fancy Dress Party Outfit
Hot selling 2014 Adult cute Hot gray basketball Bunny Halloween Christmas Mascot Costume Fancy Dress
Hot selling 2014 Adult cute Dinosaur Mascot Costume Adult Character Costume Halloween party costume
Hot sale Foam Character Adult cute Pizza Slice Mascot Costume fancy dress Halloween party costume
Hot sale Cute Character Adult cute New Clown Bear Mascot Costume fancy dress Halloween party costume
Hot sale Cute Adult cute happy cartoon toy mascot Frog Christmas size party costume
Hot sale Cute Adult cute blue clown mascot fancy dress costumes Halloween cartoon party costumes
Hot sale 2017 Adult Professional New Parrot Mascot Costume Adult Fancy Dress Cartoon Party Outfits Suit
Hot sale Cute Character Adult lovely Grey Husky Mascot Costume fancy dress Halloween party costume
Hot sale Cute Cartoon Character Adult Cat Calico Cute Mascot Costume Adult Size HOT SALE Animal EMS
New arrival Cute Adult dragon mascot costume dinosaur mascot suit fancy dress costumes adult costume custom mascot suit
Hot selling Cute Adult cute Meerkat plush mascot costume adult diagram toy Halloween costumes
Hot selling Cute Adult cute grey wolf new mascot cartoon clothing adult plush Halloween
Hot sale Cute Adult Scooby Mascot Costume Plush Fancy Dress Kids Doo Cartoon Character Party Outfit Suit
Hot selling 2017 Adult cute Professional Gray Palm Civet Adult Mascot Costume Halloween Cartoon Fancy Dress Suit
Hot selling 2017 Adult cute High quality mascot costume Scooby scooby-doo dog clothing mascot costume
Hot sale Cute Adult New cute high quality Fur Hornet Character mascot Costume cartoon Fancy Dress
Hot selling Cute Adult cute Cute Blue Care Bear Mascot Costume Adult Halloween Fancy Dress Cartoon Party Outfit Suit
Hot selling Cute Adult cute Big Ear Mouse Mascot Costume Suit Halloween Cartoon Party Outfits Fancy Dress Ideas
Hot sale Cute Adult cute white monster mascot mascot costume fancy dress party costumes adult size
Dinosaur Barney Adult mascot Dinosaur Barney mascot costume Barney mascot costume free shipping
Summer Beach Sunshine Cool Joyful Sunglasses Sun Mascot Costume Custom Cartoon Character Mascotte Suit Kit
The lion Mascot Costume EMS Express Hot Adult Size SALE
Hot sale 2019 High quality Scooby scooby-doo mascot costume Scooby scooby-doo dog clothing mascot costume
High Quality Big Bear Ursa Grizzly Mascot Costume Cartoon Character Free Shipping
High Quality Bear Ursa Grizzly Mascot Costume Cartoon Character Free Shipping
Hearts costume mascot Love Hearts mascot Free shipping
HOT SALE Buzz Lightyear Cartoon animal Mascot Costume Fancy Dress Animal mascot costume free shipping
Hot Sale Professional Mascot Costume Adult Size Fancy Dress Big Hand Lion Mascot Costume Free Shiping
New Revised Version sweety fruit Strawberry Halloween cosplay Adult Animal mascot costume foam costumes free shipping
Little Leopard Panther Cat Cougar Cub Mascot Costume Adult SizeMascot Outfit Suit Fancy Dress
Cool Yellow Barney Family Friends Phytodinosauria Dinosaur Dino Mascot Costume With Red Small Hat Bright Eyes No.4458 FS
NEW STYLE CUTE dog carry me Christmas Adult cartoon Mascot Costume Fancy Dress Animal mascot costume free shipping
Mature Red Green Cherry La Cereza Mascot Costume Fruit Fancy Dress With Red Globe Big Head Green Leaf Stalk Hair No.6045 FS
Vivid White Mouselet Muroidea Mouse Mice Rat Adult Mascot Costume Mascotte With Small Black Eyes Round Nose No.390 Free Ship
Cute White Red Humpty Dumpty Mascot Costume Chicken Eggs Shell Egg Henapple With Happy Face Samll Red Hat No.726 Free Shipping
Strong Blue Red Superman Mascot Costume Mascotte Ubermensch Superhero Super Hero With Strong Muscle Red Cloak No.706 Free Ship
Fancy Bee Honeybee Mascot Costume Mascotte Insect Apidae Adult With Yellow Black Stripes Skin Long Tentacles No.999 Free Ship
Lively Green Birthday Bear Mascot Costume Mascotte Care Bears With White Belly Colorful Cake Pattern Adult No.1198 Free Ship
Brand Name
Riskcell
Capacity
> 40Ah
Voltage
12v
Type
Lithium Battery
Capacity
200Ah
Fit moto powr
Less 1200w
Size
521*238*222MM
Weight
24kg
applications 1
Mobility Batteries
applications 2
Proprietary Custom Packs
applications 3
Recreational Vehicles
applications 4
Electric Vehicles
is_customized
yes
applications 5
UPS And Switchgear
12V lithium ion battery is new environmentally friendly backup power system focus on short-time and high-rate discharge scenarios.The environmentally friendly lithium ion battery configured with high-performance BMS, has a wide range of performance and application advantages compared with conventional battery. Basic Specification ItemsItems Parameter BatteryType LiFePO4 NominalVoltage 12.8V Nominal Capacity 200Ah Energy 2.56KWh InternalResistance ≤20mΩ Cell type 3.2v 26650 3c 4000mah cell LimitedChargeVoltage 14.6±0.2V FloatingChargeVoltage 13.8±0.2V ChargeMethod CC/CV DischargeCut-offVoltage 10.0V StandardChargeCurrent 10A Max.ChargeCurrent 50A StandardContinuousDischargeCurrent 100A Max.ContinuousDischargeCurrent (<10min 110a="" 200a="" cyclelife="" pulsedischargecurrent="" s="">2000 cycles Dimension (mm) Length: 521±2Width: 238±2 Height: 222±2 Weight 24±0.2Kg Charge Temperature Range 0~45℃ Discharge Temperature Range -20~60℃ RecommendedOperatingTemperature 15~35℃ Self-DischargeRate (Residualcapacity) ≤3%/month;≤15%/years Self-DischargeRate (Reversiblecapacity) ≤1.5%/month;≤8%/years StorageTemperature&HumidityRange (Lessthan1month) -20~35℃,45~75%RH StorageTemperature&HumidityRange (Lessthan3months) -10~35℃,45~75%RH Recommended StorageTemperature&HumidityRange 15~35℃,45~75%RH 1 .It is high integrated with less installationspace 2.Long life cycle, >3000 times at 80% DOD 3.It without heavy metals and environment friendly 4.Maintenance free,there is no memory effect 5.Internal BMS with full protection,battery has highvoltage protection with higher reliability SAFETY Passed the below abuse and safety test-short-circuit, dropping, nail penetration, impact, crush, thermal shock, over-charge,over-discharge: no fire, no explosion with stable chemical structure. APPLICATIONS 1.Energy Storage --Solar-Wind Power System / City Grid (On/Off) / Community and Family 2.Back-up System and UPS --Telcom Base / CATV system / Computer Server Center / Medical Instrumnt / Military Equipment 3.Other Applications --Security and Electronics / Mobile POS, Mining Lihgt / Torch / LED Light / Emergency Light --RV Motorhome /Golf Carts Battery / Boat Marine Yachts / Electric Skateboard --LED Backup / Engine Starting Battery,etc. Product Comparison Advantage 1, High energy density 2, High working voltage for single battery cells 3, Pollution-free 4, Long cycle life 5, No memory effect 6, Capacity, resistance, Voltage, platform time consistency is good 7, With short-circuit production function, safe and reliable 8, Factory price& High quality 9, Good consistency, low self discharge 10, Light weight, small and customized size 11.Wide application for electronics and industry Application Widely used for Electric bicycle,golf car,electric wheelchair,power tools,scooter, UPS,Solar&Wind energy storage system,EV,etc. About the BMS Our BMS consists of Master BMS Circuitry (we named “BMU”), Slave BMS Circuitry (we integrate itinto our battery module) and contactor.Besides the basic functions such as over charge/ discharge,over current, short circuit, overtemperature and balancing, Our BMS owns the following features, 1. Master-Slave architecture makesthe system flexible; 2. Two level warning makes maintenance easier; 3. CAN2.0 and industrial level electronic components make system reliable; 4. Contactor makes high rate charge & discharge feasible; 5. Periodic insulation measurement makes personnel safety possible; 6. Host can control the system easily; Pictures Factory Experience We have more than 10years experience in producing Nicd&NiMH battery cell and pack,7years of experience to manufacture Lithum ionbattery,thefactorypassedISO 9001:2008 certification. Strict process management and control Each process for making battery were under strict managementand control,all of the battery wereunder full inspection before delivery. After-sales service Support prompt shipment and sample quality products,track the cargo in time after delivery.Morethanone year Guarantee,there are safety and operating instructions for your reference. Why Choose Us? •Quickresponsetoclients'enquirieswithin12hrs •Tailor-madesolutionprovidedbyourexperiencedteamandprofessionalengineers for lithium polymer battery •Morethan10yearsexperienceinproducingbatteryproductsforvariousapplication. •Valuequalityandlong-termcooperationtoreachwin-winrelationship. 10min>
12V lithium ion battery is new environmentally friendly backup power system focus on short-time and high-rate discharge scenarios.The environmentally friendly lithium ion battery configured with high-performance BMS, has a wide range of performance and application advantages compared with conventional battery. Basic Specification ItemsItems Parameter BatteryType LiFePO4 NominalVoltage 12.8V Nominal Capacity 200Ah Energy 2.56KWh InternalResistance ≤20mΩ Cell type 3.2v 26650 3c 4000mah cell LimitedChargeVoltage 14.6±0.2V FloatingChargeVoltage 13.8±0.2V ChargeMethod CC/CV DischargeCut-offVoltage 10.0V StandardChargeCurrent 10A Max.ChargeCurrent 50A StandardContinuousDischargeCurrent 100A Max.ContinuousDischargeCurrent (<10min 110a="" 200a="" cyclelife="" pulsedischargecurrent="" s="">2000 cycles Dimension (mm) Length: 521±2Width: 238±2 Height: 222±2 Weight 24±0.2Kg Charge Temperature Range 0~45℃ Discharge Temperature Range -20~60℃ RecommendedOperatingTemperature 15~35℃ Self-DischargeRate (Residualcapacity) ≤3%/month;≤15%/years Self-DischargeRate (Reversiblecapacity) ≤1.5%/month;≤8%/years StorageTemperature&HumidityRange (Lessthan1month) -20~35℃,45~75%RH StorageTemperature&HumidityRange (Lessthan3months) -10~35℃,45~75%RH Recommended StorageTemperature&HumidityRange 15~35℃,45~75%RH 1 .It is high integrated with less installationspace 2.Long life cycle, >3000 times at 80% DOD 3.It without heavy metals and environment friendly 4.Maintenance free,there is no memory effect 5.Internal BMS with full protection,battery has highvoltage protection with higher reliability SAFETY Passed the below abuse and safety test-short-circuit, dropping, nail penetration, impact, crush, thermal shock, over-charge,over-discharge: no fire, no explosion with stable chemical structure. APPLICATIONS 1.Energy Storage --Solar-Wind Power System / City Grid (On/Off) / Community and Family 2.Back-up System and UPS --Telcom Base / CATV system / Computer Server Center / Medical Instrumnt / Military Equipment 3.Other Applications --Security and Electronics / Mobile POS, Mining Lihgt / Torch / LED Light / Emergency Light --RV Motorhome /Golf Carts Battery / Boat Marine Yachts / Electric Skateboard --LED Backup / Engine Starting Battery,etc. Product Comparison Advantage 1, High energy density 2, High working voltage for single battery cells 3, Pollution-free 4, Long cycle life 5, No memory effect 6, Capacity, resistance, Voltage, platform time consistency is good 7, With short-circuit production function, safe and reliable 8, Factory price& High quality 9, Good consistency, low self discharge 10, Light weight, small and customized size 11.Wide application for electronics and industry Application Widely used for Electric bicycle,golf car,electric wheelchair,power tools,scooter, UPS,Solar&Wind energy storage system,EV,etc. About the BMS Our BMS consists of Master BMS Circuitry (we named “BMU”), Slave BMS Circuitry (we integrate itinto our battery module) and contactor.Besides the basic functions such as over charge/ discharge,over current, short circuit, overtemperature and balancing, Our BMS owns the following features, 1. Master-Slave architecture makesthe system flexible; 2. Two level warning makes maintenance easier; 3. CAN2.0 and industrial level electronic components make system reliable; 4. Contactor makes high rate charge & discharge feasible; 5. Periodic insulation measurement makes personnel safety possible; 6. Host can control the system easily; Pictures Factory Experience We have more than 10years experience in producing Nicd&NiMH battery cell and pack,7years of experience to manufacture Lithum ionbattery,thefactorypassedISO 9001:2008 certification. Strict process management and control Each process for making battery were under strict managementand control,all of the battery wereunder full inspection before delivery. After-sales service Support prompt shipment and sample quality products,track the cargo in time after delivery.Morethanone year Guarantee,there are safety and operating instructions for your reference. Why Choose Us? •Quickresponsetoclients'enquirieswithin12hrs •Tailor-madesolutionprovidedbyourexperiencedteamandprofessionalengineers for lithium polymer battery •Morethan10yearsexperienceinproducingbatteryproductsforvariousapplication. •Valuequalityandlong-termcooperationtoreachwin-winrelationship. 10min>
